Diesel Driven Centrifugal Pump Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10464
Last updated: 8 October 2026

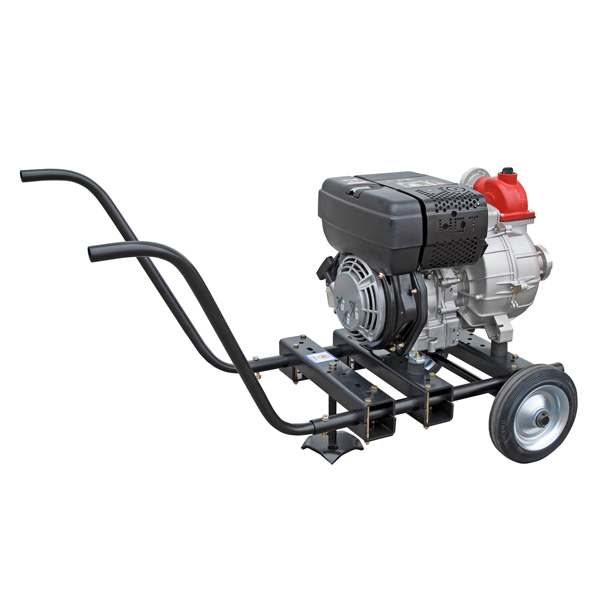

The Diesel Driven Centrifugal Pump is a self-priming centrifugal pumping set rated at 20 cubic metres per hour at around 2900 RPM against 20 metres total manometric head for a 1 m suction head, with a maximum suction lift of 5 metres. It is the mid-capacity set of the three pumping sets in the Water and Sanitation range.
Specifications
| Specification | Value |
|---|---|
| Type | Self-priming centrifugal pumping set |
| Capacity | 20 cubic metres per hour |
| Speed | Around 2900 RPM |
| Total manometric head | 20 metres |
| Suction head | 1 m |
| Maximum suction lift | 5 metres |
Capacity across the range
| Pumping set | Capacity at 2900 RPM, 20 m TMH |
|---|---|
| Centrifugal Pump Diesel Driven | 50 m3 per hour |
| Diesel Driven Centrifugal Pump | 20 m3 per hour |
| Centrifugal Pump | 10 m3 per hour |
Used for
Water transfer at a mid-range duty, where hand pumping cannot keep up but a 50 cubic metre set would be oversized for the pipework it feeds. Sizing a pump above the line it discharges into wastes fuel and raises velocity in the pipe rather than delivering more water, which is why flow is matched to the distribution main and not to the size of the source. The limit to check against the site is the maximum suction lift of 5 metres, the vertical distance from the water surface up to the pump; past that the set will not draw at any rated flow. Discharge runs through a Lay-Flat Rapid Fitting Hose, and the delivery line is isolated with a Brass Gate Valve and protected on shutdown by a Cast Iron Check Valve. Output is metered through a Multi or Single Jet Water Meter.
Packing and documentation
Supplied in institutional quantities against a purchase order. State the diameter of the delivery pipework when ordering, so the set is matched to the line it will feed. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery, and that installation assistance, training manuals and technical support are provided with equipment supplied to institutions. Mixed water and sanitation lots are quoted through the Tenders page.
Related items
- Centrifugal Pump Diesel Driven — 50 m3 per hour at 20 m TMH, trolley or skid mounted.
- Centrifugal Pump — 10 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Electrical Submersible Pump — borehole pump, motor up to 7.5 kW, 380 to 400 V 3-phase.
- Open Top Hand Pump — hand abstraction for 65 mm ND riser pipes.
- Lay-Flat Rapid Fitting Hose — 75 mm, 25 m length, Guillemin couplings both ends.
- Cast Iron Check Valve — 100 mm, swing type, 10 bar, prevents back flow.
- Multi or Single Jet Water Meter — 13 mm bore, Qn 1.5 m3 per hour, 10 bar working pressure.
- Water Tank Collapsible — 10 CBM static storage, polyester with PVC coating.
- Water Tank (bladder) — 4 m by 2.2 m, 1100 g/m2 fabric, for truck transport.
- Brass Gate Valve — for starting and stopping flow on distribution lines.
- Wafer Style Butterfly Valve — wafer pattern valve for pipeline isolation.
- Water and Sanitation — the full pumps, tanks, valves, fittings and taps range.
Questions buyers ask
What is the capacity of this pumping set?
20 cubic metres per hour at around 2900 RPM, against 20 metres total manometric head for a 1 m suction head.
What is the maximum suction lift?
5 metres, measured from the water surface up to the pump.
Should I order a larger set to be safe?
Not usually. Oversizing above the delivery pipework raises velocity in the pipe and fuel use without delivering proportionally more water, so flow is matched to the line being fed.
Does a bigger set in this range give more lift?
No. All three sets share the same 20 metre total manometric head, so moving up the range buys flow only.
Where is the full mechanical specification?
The 50 m3 per hour set page lists the engine, starting options, mounting and the inlet and outlet diameter range.
What is the smallest set available?
The Centrifugal Pump at 10 cubic metres per hour.
Request a quotation
Send the required flow, the head and the suction lift at your site through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
