Product Code : EL-WS-10457
Last updated: 8 October 2026

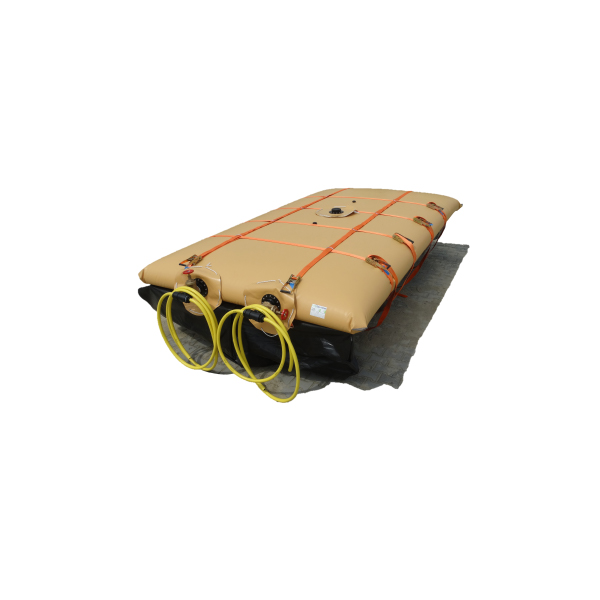

The Water Tank (bladder) is a collapsible flexible tank measuring 4 m by 2.2 m by 0.65 m with a maximum capacity of 6 tonnes, built from UV-resistant food grade PVC-coated polyester fabric of minimum 1100 g/m2 and designed specifically for carrying water on trucks. It is listed in the Water and Sanitation range, where the Water Tank Collapsible is the static storage version.
Specifications
| Specification | Value |
|---|---|
| Type | Collapsible flexible water tank, bladder, for truck transport |
| Length | 4 m |
| Width | 2.2 m |
| Height | 0.65 m |
| Maximum capacity | 6 tonnes |
| Fabric | UV resistant food grade PVC-coated polyester, minimum 1100 g/m2 |
| Base fabric | Bi-composite polyester or equivalent, 1100 g/m2 |
| Outer coating | Abrasion and UV-resistant PVC, minimum 480 g/m2 |
| Inner coating | Black polyurethane, PVC or equivalent, minimum 200 g/m2 |
| Opacity | Opaque, to inhibit algae growth |
| Fittings | Inlet and cap on top of the tank |
| Assembly | Heat welding or high frequency welding |
| Temperature resistance | -30 C to +70 C |
| Biological resistance | Mildew and rot resistant |
| Chlorine tolerance | 0.5 mg/litre at 35 C water temperature, without alteration of the stored water |
| Peak chlorine tolerance | 5 mg/litre during the cleaning process |
| Intended contents | Chlorinated drinking water |
Used for
Moving bulk water by road, where the tank is filled, carried on a truck bed and discharged at the delivery point. Two things in the specification follow from that duty rather than from storage: the fabric is minimum 1100 g/m2, several times the base weight of a static tank, because a loaded bladder flexes and abrades against the truck bed in transit; and the material is opaque to inhibit algae growth, since a transport tank spends its time in daylight. The inlet and cap sit on top so the tank can be filled without unloading. Filling is usually from a Centrifugal Pump Diesel Driven through a Lay-Flat Rapid Fitting Hose, and the delivered water is decanted into a Water Tank Collapsible or a Collapsible Water Container on arrival.
Packing and documentation
Supplied in institutional quantities against a purchase order, folded for despatch. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery. Mixed water and sanitation lots are quoted through the Tenders page.
Related items
- Water Tank Collapsible — 10 CBM static storage, 250 g/m2 base fabric.
- Collapsible Water Container — 10 litres, PVC-coated polyester, UV resistant.
- Centrifugal Pump Diesel Driven — 50 m3 per hour at 20 m TMH, trolley or skid mounted.
- Diesel Driven Centrifugal Pump — 20 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Centrifugal Pump — 10 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Lay-Flat Rapid Fitting Hose — 75 mm, 25 m length, Guillemin couplings both ends.
- Electrical Submersible Pump — borehole pump, motor up to 7.5 kW, 380 to 400 V 3-phase.
- Multi or Single Jet Water Meter — 13 mm bore, Qn 1.5 m3 per hour, 10 bar working pressure.
- Cast Iron Check Valve — 100 mm, swing type, 10 bar, prevents back flow.
- Emergency Water Testing Kit — chlorine 0.1 to 3.0 mg/l and pH 6.8 to 8.2.
- Water Filter, Candle Type — four silver-impregnated ceramic elements, up to 80 litres per day.
- Water and Sanitation — the full pumps, tanks, valves, fittings and taps range.
Questions buyers ask
What are the dimensions and capacity of this bladder tank?
4 m long, 2.2 m wide and 0.65 m high, with a maximum capacity of 6 tonnes.
Why is the fabric heavier than on a static tank?
It is specified at minimum 1100 g/m2 because a loaded bladder flexes and abrades on a truck bed in transit, where a static tank sits still.
Is it designed for transport or for storage?
Transport. The specification states it is designed specifically for use on trucks for water transport.
Why is the material opaque?
To inhibit algae growth, which matters for a tank that spends its working life in daylight.
How much chlorine will the liner tolerate?
0.5 mg per litre continuously at 35 C, and a peak of 5 mg per litre during cleaning, without alteration of the stored water.
Where are the fittings?
An inlet and cap on top of the tank, so it can be filled in place on the vehicle.
Request a quotation
Send the quantity and the vehicle bed dimensions you need the tank to fit through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
