Centrifugal Pump Diesel Driven Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10463
Last updated: 8 October 2026

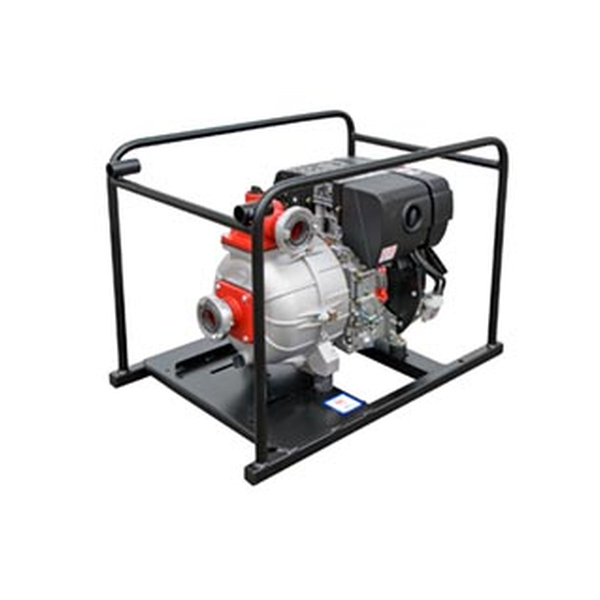

The Centrifugal Pump Diesel Driven is a self-priming centrifugal pumping set rated at 50 cubic metres per hour at around 2900 RPM against 20 metres total manometric head for a 1 m suction head, coupled directly to a matching diesel engine and mounted on a two-wheel trolley or a steel skid. It is the largest of the three pumping sets in the Water and Sanitation range.
Specifications
| Specification | Value |
|---|---|
| Type | Self-priming centrifugal pumping set |
| Capacity | 50 cubic metres per hour |
| Speed | Around 2900 RPM |
| Total manometric head | 20 metres |
| Suction head | 1 m |
| Drive | Coupled directly to a diesel engine of matching power |
| Engine type | Air-cooled, direct injection diesel |
| Starting options | Rope starting, recoil starter, or electric starter with 12 V battery and charging alternator |
| Governor | Speed control governor fitted |
| Fuel tank | Sufficient for 2 to 3 hours of continuous normal operation |
| Mounting | Two-wheel trolley with handlebar, or sturdy steel skid with carrying handles |
| Foundation | Skid pre-drilled for bolting down |
| Casing, shaft and impeller | Cast iron |
| Shaft seal | Mechanical water seal |
| Inlet and outlet sizes | Available in 50, 65, 75, 100 and 150 mm |
Capacity across the range
| Pumping set | Capacity at 2900 RPM, 20 m TMH |
|---|---|
| Centrifugal Pump Diesel Driven | 50 m3 per hour |
| Diesel Driven Centrifugal Pump | 20 m3 per hour |
| Centrifugal Pump | 10 m3 per hour |
Used for
Bulk water transfer at the top of this range: filling tankers, charging storage from an open source, or dewatering, where 50 cubic metres an hour is the duty. Being self-priming, the set lifts from a flooded or near-flooded suction without manual priming each start, and the two-wheel trolley lets one person reposition it between draw points; the pre-drilled skid is the alternative where the set stays put and is bolted to a foundation. The suction and discharge diameters are not fixed at a single size, so the supplier matches the most efficient inlet and outlet for the ordered capacity from the 50 to 150 mm range. Discharge usually runs through a Lay-Flat Rapid Fitting Hose into a Water Tank (bladder) or a Water Tank Collapsible, with a Cast Iron Check Valve holding the column on shutdown. For smaller duties the 20 m3 per hour set and the 10 m3 per hour set cover the same head.
Packing and documentation
Supplied in institutional quantities against a purchase order. The inlet and outlet diameters supplied are matched to the ordered capacity, so state the pipework you are connecting to when ordering. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery, and that installation assistance, training manuals and technical support are provided with equipment supplied to institutions. Mixed water and sanitation lots are quoted through the Tenders page.
Related items
- Diesel Driven Centrifugal Pump — 20 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Centrifugal Pump — 10 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Electrical Submersible Pump — borehole pump, motor up to 7.5 kW, 380 to 400 V 3-phase.
- Open Top Hand Pump — hand abstraction for 65 mm ND riser pipes.
- Lay-Flat Rapid Fitting Hose — 75 mm, 25 m length, Guillemin couplings both ends.
- Cast Iron Check Valve — 100 mm, swing type, 10 bar, prevents back flow.
- Multi or Single Jet Water Meter — 13 mm bore, Qn 1.5 m3 per hour, 10 bar working pressure.
- Water Tank Collapsible — 10 CBM static storage, polyester with PVC coating.
- Water Tank (bladder) — 4 m by 2.2 m, 1100 g/m2 fabric, for truck transport.
- Brass Gate Valve — for starting and stopping flow on distribution lines.
- Wafer Style Butterfly Valve — wafer pattern valve for pipeline isolation.
- Water and Sanitation — the full pumps, tanks, valves, fittings and taps range.
Questions buyers ask
What is the capacity of this pumping set?
50 cubic metres per hour at around 2900 RPM, against 20 metres total manometric head for a 1 m suction head.
What starting arrangements are available?
Rope starting, a recoil starter, or an electric starter with a 12 volt battery and charging alternator.
How long will it run on one tank of fuel?
The fuel tank is sized for 2 to 3 hours of continuous normal operation.
What are the inlet and outlet sizes?
They vary with capacity across 50, 65, 75, 100 and 150 mm. The most efficient diameters for the ordered pump are supplied with it.
Is it portable or fixed?
Either. It is mounted on a two-wheel trolley with a handlebar, or on a steel skid with carrying handles and pre-drilled holes for bolting to a foundation.
What are the smaller options in this range?
The Diesel Driven Centrifugal Pump at 20 m3 per hour and the Centrifugal Pump at 10 m3 per hour.
Request a quotation
Send the required flow, head and the pipework diameters you are connecting to through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
