Centrifugal Pump Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10465
Last updated: 8 October 2026

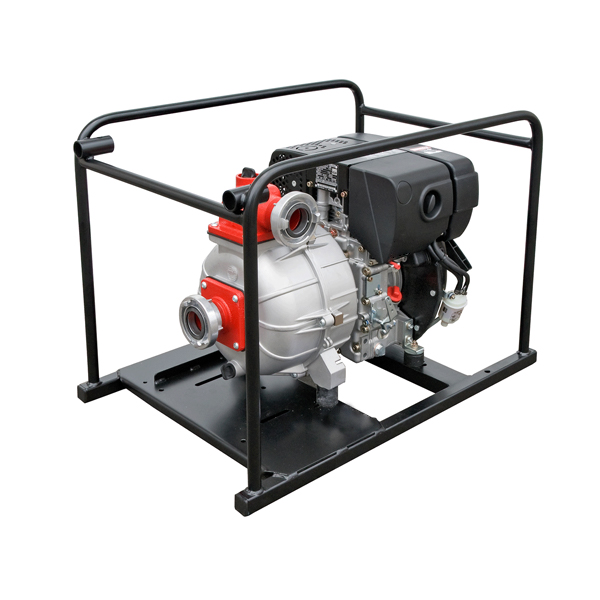

The Centrifugal Pump is a self-priming centrifugal pumping set rated at 10 cubic metres per hour at around 2900 RPM against 20 metres total manometric head for a 1 m suction head, with a maximum suction lift of 5 metres. It is the smallest of the three pumping sets in the Water and Sanitation range.
Specifications
| Specification | Value |
|---|---|
| Type | Self-priming centrifugal pumping set |
| Capacity | 10 cubic metres per hour |
| Speed | Around 2900 RPM |
| Total manometric head | 20 metres |
| Suction head | 1 m |
| Maximum suction lift | 5 metres |
Capacity across the range
| Pumping set | Capacity at 2900 RPM, 20 m TMH |
|---|---|
| Centrifugal Pump Diesel Driven | 50 m3 per hour |
| Diesel Driven Centrifugal Pump | 20 m3 per hour |
| Centrifugal Pump | 10 m3 per hour |
Used for
The smallest duty in this range, matching a single distribution point, a small institution or a tank-to-tank transfer. What decides whether this set suits a site is not its flow but its reach: the maximum suction lift is 5 metres, measured vertically from the water surface up to the pump, and a suction pump cannot be made to draw past its lift by running it harder. A shallow well, a river intake or a sump within that 5 metres will prime and run; a borehole below it needs the Electrical Submersible Pump, which sits in the water and pushes upward instead. Delivery is commonly a Lay-Flat Rapid Fitting Hose into a Water Tank Collapsible, with a Cast Iron Check Valve holding the column when the set stops.
Packing and documentation
Supplied in institutional quantities against a purchase order. State the depth from the water surface to the proposed pump position when ordering, so the set can be checked against its 5 metre suction lift before despatch. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery, and that installation assistance, training manuals and technical support are provided with equipment supplied to institutions. Mixed water and sanitation lots are quoted through the Tenders page.
Related items
- Centrifugal Pump Diesel Driven — 50 m3 per hour at 20 m TMH, trolley or skid mounted.
- Diesel Driven Centrifugal Pump — 20 m3 per hour at 20 m TMH, 5 m maximum suction lift.
- Electrical Submersible Pump — borehole pump, motor up to 7.5 kW, 380 to 400 V 3-phase.
- Open Top Hand Pump — hand abstraction for 65 mm ND riser pipes.
- Lay-Flat Rapid Fitting Hose — 75 mm, 25 m length, Guillemin couplings both ends.
- Cast Iron Check Valve — 100 mm, swing type, 10 bar, prevents back flow.
- Multi or Single Jet Water Meter — 13 mm bore, Qn 1.5 m3 per hour, 10 bar working pressure.
- Water Tank Collapsible — 10 CBM static storage, polyester with PVC coating.
- Water Tank (bladder) — 4 m by 2.2 m, 1100 g/m2 fabric, for truck transport.
- Brass Gate Valve — for starting and stopping flow on distribution lines.
- Wafer Style Butterfly Valve — wafer pattern valve for pipeline isolation.
- Water and Sanitation — the full pumps, tanks, valves, fittings and taps range.
Questions buyers ask
What is the capacity of this pumping set?
10 cubic metres per hour at around 2900 RPM, against 20 metres total manometric head for a 1 m suction head.
How deep can it draw from?
A maximum suction lift of 5 metres, measured from the water surface up to the pump position.
What if the water sits deeper than 5 metres?
A suction pump cannot draw beyond its lift. Use the Electrical Submersible Pump, which is submerged in the water and pushes to the surface.
Is this set suitable for a single distribution point?
Yes, that is the duty it is sized for, along with small institutions and tank-to-tank transfer.
What does self-priming mean on this set?
It clears air from the suction line itself, so it does not need priming by hand before each start.
What are the larger sets in the range?
The Diesel Driven Centrifugal Pump at 20 and the Centrifugal Pump Diesel Driven at 50 cubic metres per hour.
Request a quotation
Send the required flow, the head and the suction lift at your site through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
