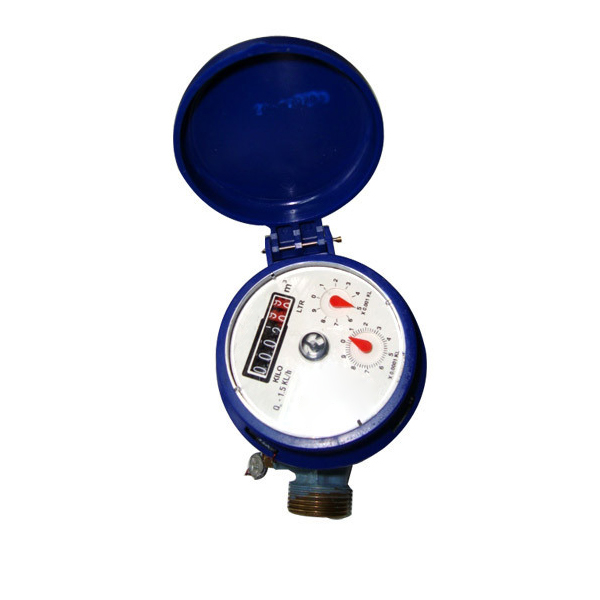

Multi or Single Jet Water Meter Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10466
Written by Palak Mall, Senior Content Writer · reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory supply · updated 17 October 2026
The Multi or Single Jet Water Meter is a 13 mm (½ inch) bore meter rated at a nominal flow of 1.5 cubic metres per hour, with a maximum of 3 cubic metres per hour and a minimum of 30 litres per hour, reading down to 0.1 litre. It is listed with the valves and pipe fittings in Water and Sanitation.
What is specified
| Detail | Figure listed |
|---|---|
| Type | Multi-jet or single-jet, for horizontal and/or vertical installation |
| Nominal bore | 13 mm (½ inch) |
| Flow rates | Qmax 3 cubic metres per hour; Qn 1.5 cubic metres per hour; Qt 120 litres per hour; Qmin 30 litres per hour |
| Accuracy | + 2 per cent from transitional to maximum flow; + 5 per cent from minimum to transitional flow |
| Pressure | Maximum working pressure 10 bar; testing pressure 20 bar |
| Temperature | Maximum operating water temperature 40°C; testing temperature 50°C |
| Register | Reads to 0.1 litre, maximum 99 999 cubic metres; metallic or plastic housing with cover, rotating through 360 degrees |
| Mechanism | Magnetic direct drive, extra dry, balanced rotor, anti-fogging glass, leak detection star; totaliser interchangeable on site |
| Strainer | Internal filter on the inflow side |
| Body | Metallic, corrosion resistant, epoxy coated inside and out |
Four flow rates, and which one to quote
Qn, at 1.5 cubic metres per hour, is the flow the meter is rated for in normal service; Qmax, at 3, is its ceiling; and the accuracy band changes at the transitional flow of 120 litres per hour, from 5 per cent below it to 2 per cent above it. Match Qn to the expected demand on the line rather than matching the bore to the pipe.
Questions buyers ask
Can it be fitted in a vertical pipe?
Yes. It is listed for horizontal and/or vertical installation.
Can the dial be turned to face the reader?
Yes. The register housing rotates through 360 degrees and holds at the selected angle.
Request a quotation
Send the number of meters and the line they will serve through the contact page; utility and programme contracts go through the Tenders page.
