Pan and "P" Trap Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10443
Written by Palak Mall, Senior Content Writer · reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory supply · updated 15 October 2026

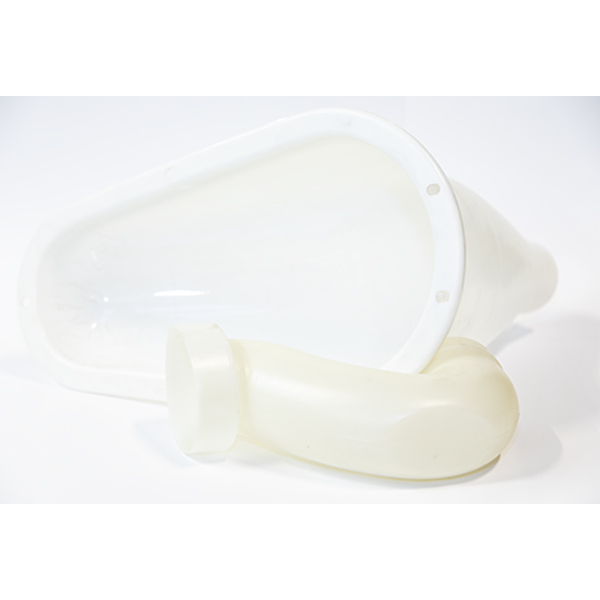

The Pan and P Trap is a PP pan with an HDPE trap for a 120 x 80 cm squatting plate: the pan weighs 500 g at 470 mm long, 250 mm wide and 345 mm high with an 81 mm outside-diameter exit, and the trap takes an 81 mm inside-diameter inlet with a 20 mm water seal. It is catalogued in Water and Sanitation beside the squatting plate it fits.
What is specified
| Detail | Figure listed |
|---|---|
| Pan material | Moulded PP |
| Trap material | Moulded HDPE |
| Fits | Squatting plate 120 x 80 cm |
| Pan size | 470 mm long, 250 mm wide, 345 mm high, 2 mm thick, 500 g |
| Pan exit pipe | 81 mm outside diameter |
| Trap inlet | 81 mm inside diameter |
| Water seal | 20 mm |
| Trap types | A P trap and a Goose neck trap |
| Fixing | Pan bolts to the underside of the squatting plate with the fasteners provided; trap fixed to the pan with the adhesive provided |
Two trap types, one set of dimensions
The pan is common to both options and the choice is in the trap. The numbers that must agree are the 81 mm pan exit and the 81 mm trap inlet; the 20 mm water seal keeps odour out. The pan bolts on with supplied fasteners while the trap is bonded with supplied adhesive.
Questions buyers ask
Which squatting plate does it fit?
A 120 x 80 cm squatting plate. The Squatting Plate Plastic w/o Pan has inserts on its underside for this fitting.
What is the water seal?
20 mm, on an 81 mm inside-diameter inlet.
Request a quotation
State the trap type required and send quantities through the contact page.
