Product Code : SCL-M-11578

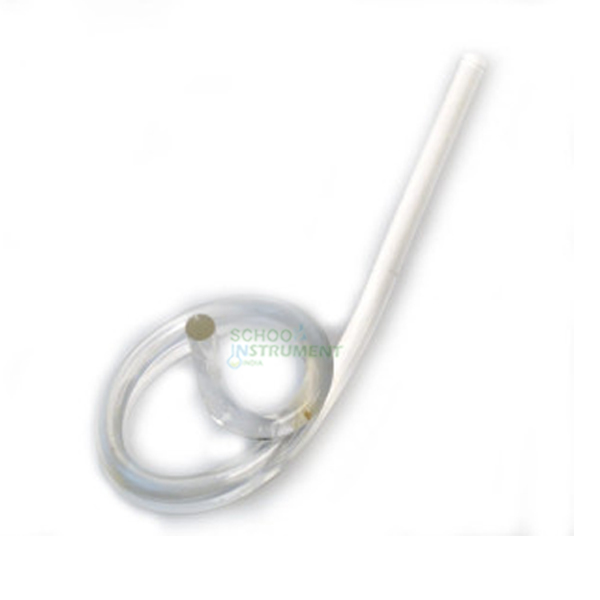

The Lumirod is a
precision-machined optical waveguide designed for the quantitative
demonstration of total internal reflection and the fundamental principles of
fiber optic transmission. Engineered for Vocational and University laboratory
environments, this School Instrument allows for the visualization of light
propagation through curled PMMA geometries. It complies with standard optical
benchmarking for secondary and higher education physics curricula.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Optical-grade Clear Acrylic
(PMMA) |
|
Geometric Configuration |
Curled/Coiled architecture
for multi-point internal reflection |
|
Available Lengths |
609.6 mm (24") or 1219.2
mm (48") |
|
Light Source Compatibility |
Collimated Beam (Laser Diode)
or High-Intensity LED |
|
Surface Treatment |
Precision-polished peripheral
surfaces to maximize reflectivity |
Key Pedagogical Outcomes
· Curled
Acrylic Geometry: Analyzing Total Internal Reflection (TIR). Enables students to "Analyze" the
critical angle requirements for light containment within a solid medium,
supporting Wave Optics Module 302.
· 24"/48"
High-Clarity Path: Evaluating Attenuation and Signal Integrity. Allows for the "Evaluation" of
light intensity loss over distance, simulating real-world fiber optic
transmission constraints.
· Broad-Spectrum
Light Acceptance: Applying Geometric Optics. Supports the "Application" of Snell’s Law by allowing
students to vary incident light angles to determine the acceptance cone of the
light pipe.
· Activity
Guide Documentation: Understanding Waveguide Theory. Facilitates "Understanding" of the
transition from classical refraction to internal waveguide propagation through
structured experimental protocols.
International Logistics & Compliance
To satisfy
international procurement standards, all Lumirod units are shipped in
export-grade seaworthy crating (ISPM-15 compliant) to prevent mechanical stress
or surface scratching during transit. Documentation includes a Manufacturer’s
Authorization Form (MAF), complete IQ/OQ/PQ Certification, and technical User
Manuals in English. The apparatus features a tropicalized design, utilizing
UV-stabilized acrylic tested for optical clarity in environments up to 45°C and
90% humidity, ensuring durability in equatorial laboratory conditions.
