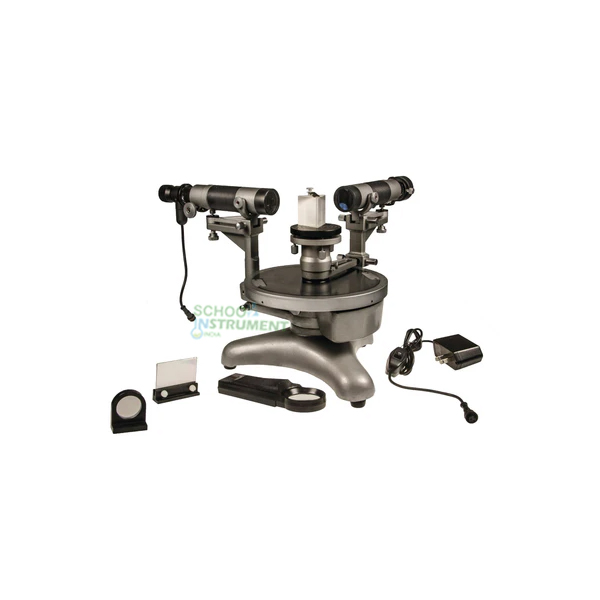

Intermediate Spectrometer Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11560
The Intermediate Optical Spectrometer is a high-precision
analytical instrument engineered for the quantitative determination of
refractive indices and spectral wavelengths. Designed for University and Vocational TVET physics laboratories, it
adheres to ASTM optical standards and features a 1' resolution
vernier scale. This unit facilitates advanced modules in wave optics, including
Fraunhofer lines analysis and diffraction grating characterization.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Optical Component Grade |
High-transmittance 22mm
achromatic optics |
|
Collimation System |
Built-in illuminated
auto-collimator for accelerated optical alignment |
|
Angular Measurement Area |
17.8cm diameter divided
circle with high-contrast graduations |
|
Scale Resolution |
Double-ended Vernier with
illuminated magnifier reading to 1' arc resolution |
|
Prism Table Dimensions |
7cm diameter; 360° rotation;
2cm vertical displacement |
|
Included Accessories |
Equilateral prism,
diffraction grating (with holder), auto-collimation mirror |
|
Power Requirements |
Integrated 110VAC power
supply for scale/collimator illumination |
|
Physical Footprint |
17" x 17" x
12"; Shipping Mass: 29 lbs. |
Key Pedagogical Outcomes
·
1' Resolution Double-Ended Vernier: Enables students to Evaluate the minimum angle of deviation with high
precision, supporting Synthesis of refractive index
calculations.
·
Built-in Illuminated Auto-Collimator: Allows students to Apply
rapid calibration protocols to ensure parallel light paths, reinforcing Application of standardized optical alignment
techniques.
·
360° Rotating Prism Table: Facilitates the Analysis of
dispersion patterns and diffraction orders across multiple gratings, supporting
advanced Analysis in wave theory modules.
International Logistics & Compliance
This School Instrument is prepared for global B2B
distribution via export-grade seaworthy crating (ISPM-15 compliant).
To ensure the integrity of the 22mm optics and vernier scales, each unit is
secured in high-density foam inserts and vacuum-sealed against moisture.
Documentation provided to procurement officers includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ
Certification, and a comprehensive technical manual in English. The tropicalized design is tested for dimensional stability
and scale legibility in environments reaching 45°C and 90% Humidity,
preventing the fungal growth and mechanical binding common in non-tropicalized
optical hardware.
