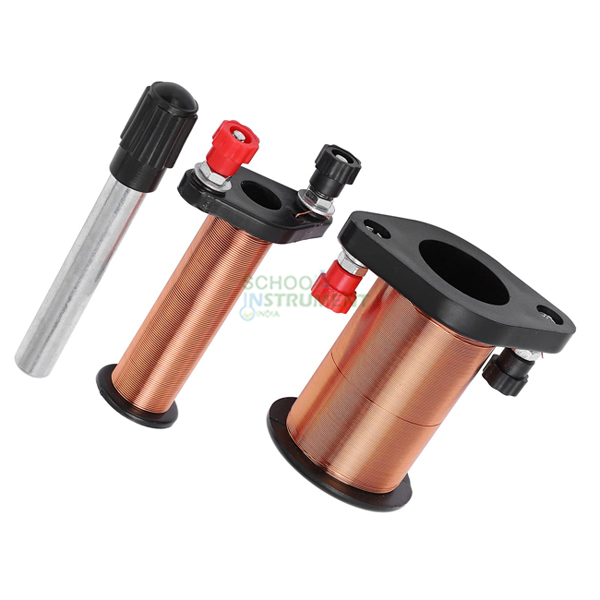

Primary and Secondary Coils Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11424
Engineered for the
quantitative analysis of electromagnetic induction and Faraday’s Law, this
superior induction set facilitates precise investigation of mutual inductance
and transformer theory. Optimized for University and Vocational technical
curricula, it adheres to ASTM-aligned laboratory standards. The multi-tap
secondary coil provides variable turn ratios (500, 1000, and 1500), enabling
evidentiary data acquisition for complex impedance and voltage transformation
modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Plated Iron Core; High-Purity
Insulated Copper Wire; Molded Polymer Formers |
|
Primary Coil Configuration |
175 turns (18 AWG);
Resistance 0.43 Ω; Inductance ≈3.1mH |
|
Secondary Coil Configuration |
Multi-Tap: 500, 1000, 1500
turns (26 AWG) |
|
Secondary Impedance |
11.5 Ω, 23.3 Ω, 35.7 Ω
(Tap-dependent) |
|
Interface Protocol |
Shielded 4mm Safety Banana
Jacks |
|
Core Dimensions |
19mm Diameter; 165mm Length
(Plated Iron) |
|
Dimensions & Mass |
4" x 2.75" x
6.75"; 2.25 lbs. (Shipping Weight) |
Key Pedagogical Outcomes
·
Triple-Wind
Secondary Tap Interface:
Facilitates the "Analysis" of
transformation ratios (Vp /Vs = Np/Ns),
allowing students to verify the linear relationship between turn count and
induced electromotive force (EMF).
·
Molded
Handle Plated Iron Core:
Supports the "Application" of magnetic flux theory by
enabling precise manual positioning, demonstrating how core permeability
impacts coupling efficiency.
·
Shielded
Banana Jack Terminals:
Ensures "Execution" of safe laboratory protocols,
preventing accidental contact during high-inductance discharge or
high-frequency AC trials.
·
High-Purity
Copper Windings: Enables "Evaluation" of self-inductance and mutual
inductance (L and M) with low-resistance interference,
supporting advanced Electromagnetism.
·
Calibrated
Component Data: Supports "Synthesis" of theoretical calculations
versus empirical results, providing students with verified resistance and
inductance benchmarks for error analysis.
International Logistics & Compliance
This instrumentation
is processed for high-volume B2B distribution and ministerial-level educational
tenders. Packaging consists of high-density protective inserts within
export-grade seaworthy crating (ISPM-15 compliant) to maintain the integrity of
the precise wire windings during maritime transit. Documentation provided includes
the Manufacturer’s Authorization Form (MAF), internal IQ/OQ/PQ verification
reports, and technical manuals in English. The coils are fully tropicalized;
windings are treated with moisture-resistant insulation and tested for
sustained operation in laboratory environments up to 45°C and 90% humidity to
prevent dielectric breakdown.
