Laser Optical Disk Set Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11571

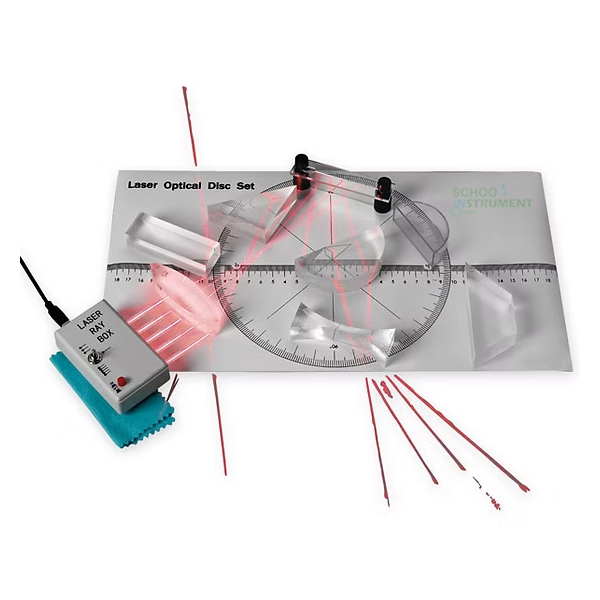

The Laser Optical Disk
Set is a comprehensive experimental platform designed for the quantitative
analysis of ray optics, including refraction, reflection, and focal length
determination. Engineered for Secondary and Vocational laboratory environments,
this Class IIIa laser-compliant system utilizes high-contrast acrylic elements
with frosted bases to visualize internal ray paths. It meets institutional
safety standards for laser radiation (λ = 650nm).
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Light Source |
Diode Laser Ray Box
(Selectable 1, 3, or 5 Parallel Beams) |
|
Laser Classification |
Class IIIa; Maximum Output
Power <1mW per beam |
|
Wavelength |
650nm (Visible Red) |
|
Material Grade |
Optical-grade Acrylic (PMMA)
with frosted diffusion bases |
|
Optical Elements |
7-piece set including
Trapezoidal, Right Angle, Biconcave, Biconvex |
|
Measurement Template |
Calibrated Vinyl; Integrated
Degree Circle and Linear Scale |
|
Safety Interface |
Momentary "Dead-man"
Safety Switch for Beam Control |
|
Housing/Storage |
Ruggedized Aluminum Case with
Internal Foam Dampening |
Key Pedagogical Outcomes
· Multi-Beam
Laser Selection (1, 3, or 5): Analyzing Convergent/Divergent Systems. Facilitates the measurement of focal points (f) and optical power, allowing students to
"Analyze" lens behavior under paraxial ray conditions.
· Frosted
Element Bases: Evaluating Internal Ray Propagation. Enables direct visualization of beam paths
inside the medium to "Evaluate" the refractive index (n) and internal reflection phenomena.
· Flexible
Adjustable Mirror: Creating Variable Focal Geometries. Allows learners to manipulate curvature to
"Create" and test hypotheses regarding spherical aberration and real
vs. virtual imagery.
· Calibrated
Vinyl Protractor Template: Applying Snell’s Law. Provides the high-precision angular data
required to "Apply" mathematical models of refraction at planar and
curved interfaces.
International Logistics & Compliance
This School Instrument
is configured for global distribution, utilizing export-grade seaworthy crating
(ISPM-15 compliant) to prevent environmental degradation during transit.
Comprehensive documentation is provided with every shipment, including the
Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical
User Manuals in English. The electronic components and laser diodes are part of
a tropicalized design, verified for consistent performance in laboratory
environments up to 45°C and 90% humidity.
