Table Clamp Pulley , Aluminum Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11665

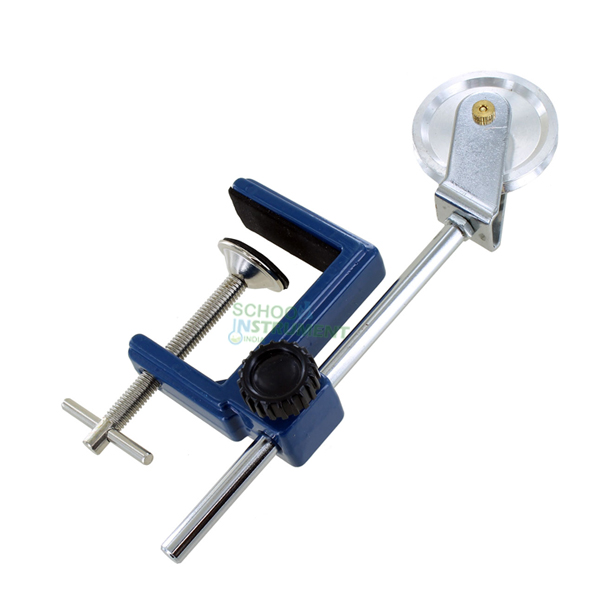

The Aluminum
Table-Edge Support Pulley is a precision mechanical assembly engineered for
empirical analysis of frictional coefficients, acceleration, and vector
dynamics. Optimized for University and Vocational (TVET) physics laboratories,
it adheres to ASTM-standardized mechanical tolerances. The unit features a
high-tensile aluminum sheave and adjustable steel support for repeatable data collection
in high-throughput institutional environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
CNC-Machined Aluminum Sheave;
1018 Cold-Rolled Steel Support Rod |
|
Clamp Aperture Range |
Variable adjustment for
surfaces up to 53 mm thickness |
|
Sheave Diameter |
50 mm (Nominal) |
|
Rod Dimensions |
140 mm (L) x 8 mm (Diameter) |
|
Vertical Displacement Range |
27 mm to 140 mm (Adjustable
height relative to surface) |
|
Locking Mechanism |
Ergonomic threaded knob for
rigid axial positioning |
|
Rotation Interface |
Low-friction smooth-rotation
bearing surface |
Key Pedagogical Outcomes
· Adjustable
140 mm Vertical Rod: Enables students to
align force vectors parallel to various inclines, facilitating the
"Analysis" of Newton’s Second Law in non-idealized environments.
· High-Mass
Aluminum Sheave: Provides lower
rotational inertia compared to steel while maintaining superior durability over
polymers, allowing students to "Evaluate" energy loss in mechanical
systems.
· 53
mm Wide-Aperture Edge Clamp: Ensures secure, vibration-resistant attachment to industrial
lab benches, supporting "Safe Laboratory Practice" protocols during
high-tension experiments.
· 8
mm Diameter Rigid Steel Support: Maintains structural alignment under load, supporting the
"Application" of equilibrium studies and multi-mass Atwood machine
configurations.
International Logistics & Compliance
This instrumentation
is processed for global tender fulfillment through export-grade seaworthy crating
(ISPM-15 compliant), protecting the structural integrity of the
steel support rods and aluminum finishes during maritime transit. Each
consignment is supplied with a comprehensive documentation suite, including the
Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ
Certification for institutional validation, and technical User Manuals in
English. The hardware features a tropicalized design,
with corrosion-resistant coatings tested for sustained performance in
environments reaching up to 45°C and 90% non-condensing humidity.
