Deluxe Current Balance Kit Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11617

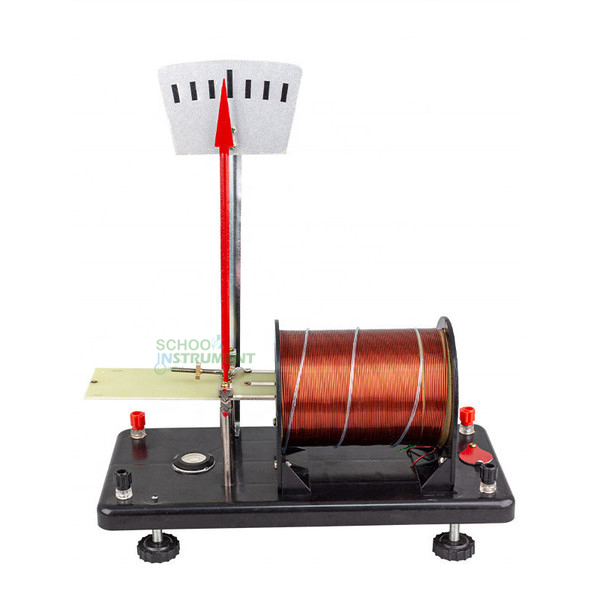

The Deluxe Current
Balance Kit is a high-precision laboratory instrument engineered for the
quantitative measurement of the Lorentz force acting on a conductor within a
magnetic field. Designed for University and Secondary physics curricula, the
apparatus features a multi-tap air core solenoid and a calibrated balance arm.
It facilitates empirical verification of magnetic flux density and current
interaction, supporting rigorous academic experimentation.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Solenoid Configuration |
Air core with transparent
acrylic former; 9.0cm Diameter |
|
Winding Increments |
5-point tapings: 100, 200,
300, 400, and 500 turns |
|
Electrical Resistance |
20 ? total (4? per 100-turn
segment) |
|
Maximum Current Load |
1.5A per 100-turn segment |
|
Balance Arm Dimensions |
240mm x 65mm x 3mm |
|
Base Dimensions |
87mm x 87mm x 35mm |
|
Total Assembly Dimensions |
12cm (W) x 20cm (D) x 11cm
(H) |
|
Material Grade |
High-conductivity copper
windings; Impact-resistant acrylic |
Key Pedagogical Outcomes
· Multi-tap Solenoid (100–500 turns): Enables students to analyze the linear
relationship between coil density and magnetic field strength (B).
· Adjustable Counterweight and Mass Loading: Allows for the evaluation of gravitational
vs. magnetic forces, facilitating the calculation of the force on a
current-carrying wire.
· Transparent Acrylic Former: Permits students to visualize the spatial
alignment of the balance arm within the solenoid, ensuring axial precision
during data collection.
· 1.5A Maximum Current Threshold: Supports the demonstration of electrodynamic
principles using standard laboratory power supplies without thermal
degradation.
International Logistics & Compliance
Our export-ready kits
are secured in ISPM-15 compliant, seaworthy crating designed to withstand
long-range multimodal transport. Every shipment includes a Manufacturer’s
Authorization Form (MAF), a batch-specific Certificate of Conformity, and
technical manuals in English. The instrument features a tropicalized design,
tested for operational integrity and dielectric stability in environments
reaching 45°C and 90% non-condensing humidity.
