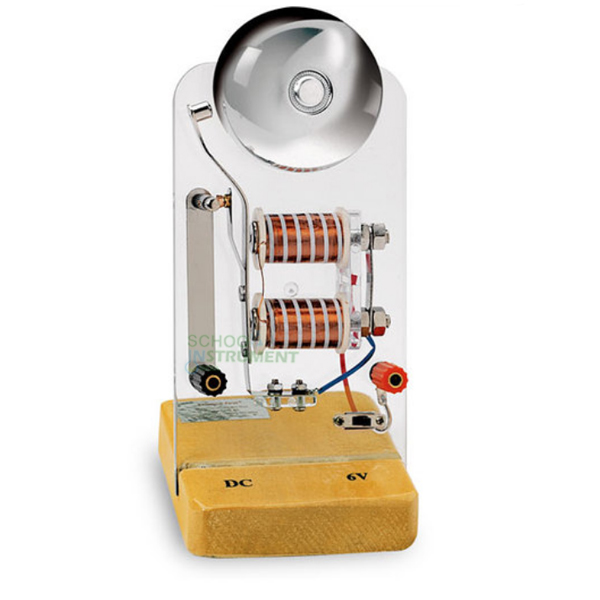

Electric Bell Model Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11446
Engineered for the
evidentiary study of electromagnetic interruption and oscillation, this
DC-powered electric bell model facilitates the quantitative analysis of
electromechanical circuits. Optimized for Secondary and Vocational TVET
curricula, it adheres to ASTM-aligned laboratory standards. The open-architecture
design enables University-preparatory observation of adjustable contact
mechanics and magnetic flux saturation during 6V DC operation.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Optical-Grade Acrylic Plate;
Kiln-Dried Finished Wood Base |
|
Operational Input |
6V DC (Stabilized) |
|
Interface |
Heavy-Duty Binding Posts;
Integrated Toggle Switch |
|
Calibration Hardware |
Precision Adjustable Contact
Screw |
|
Dimensions |
3.5" x 3.5" x
7.5" |
|
Shipping Weight |
1.0 lb. |
Key Pedagogical Outcomes
·
Open-Architecture
Acrylic Mounting: Facilitates the "Analysis" of transient magnetic fields by
allowing unobstructed visualization of the armature movement relative to the
electromagnetic coils.
·
Adjustable
Contact Screw Assembly:
Supports the "Application" of circuit frequency
modulation, enabling students to vary the mechanical oscillation rate and
observe the effects on acoustic output.
·
Integrated
6V DC Binding Posts: Enables the "Evaluation" of electromechanical feedback
loops, providing a secure interface for testing voltage thresholds and current
consumption.
·
Solenoid-Driven
Striker Mechanism: Supports "Execution" of trials involving the
conversion of electrical energy into mechanical work, supporting
Electrodynamics Module 201.
·
Comprehensive
Activity Guide: Connects hardware
usage to "Synthesis" of industrial automation and
signaling theory, providing structured, repeatable laboratory protocols.
International Logistics & Compliance
This instrumentation
is configured for high-volume B2B distribution and ministerial-level
educational tenders. Packaging consists of high-density protective inserts
within export-grade seaworthy crating (ISPM-15 compliant) to ensure precision
alignment of the gong and striker remains intact during maritime transit.
Documentation provided includes the Manufacturer’s Authorization Form (MAF),
internal IQ/OQ/PQ certification, and Technical User Manuals in English. The
unit features a tropicalized design, with oxidation-resistant contact points
and moisture-sealed windings tested for sustained operation in laboratory
environments up to 45°C and 90% Humidity.
