Digital Luxmeter Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11607

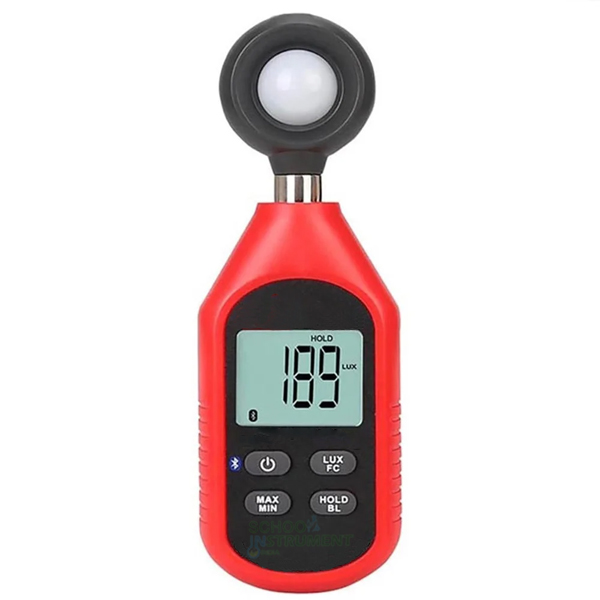

The Digital
Luxmeter is a precision-calibrated silicon diode photodetector engineered for
the empirical measurement of illuminance in Secondary and Vocational laboratory
environments. It facilitates high-accuracy data acquisition across a 0–200,000
Lux range, adhering to standard photometric compliance. The instrument supports
advanced optical curricula through integrated MIN/MAX, HOLD, and differential
measurement functions for standardized light characterization.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Impact-Resistant ABS Housing
with Silicon Diode Sensor |
|
Spectral Detection Range |
0–200,000 Lux or 0–18,500 Fc |
|
Sensor Interface |
2.5cm Diameter Silicon Diode
with Auto ranging |
|
Dimensions |
17cm (L) x 5.3cm (W) x 3.6cm
(T) |
|
Display Characteristics |
3½ Digit LCD (2.5cm x 2.5cm)
with LED Backlight |
|
Mechanical Mounting |
Integrated Threaded Socket
for Tripod Interface |
Key Pedagogical Outcomes
· High-Sensitivity
Silicon Diode Sensor: Analyzing Inverse Square Law. Facilitates the "Analysis" of light intensity
decay over distance, allowing students to verify E = I/d2 with calibrated
photometric precision.
· Differential
and MIN/MAX Functions: Evaluating Environmental Light Variability. Enables learners to "Evaluate" fluctuations in
luminous flux and contrast ratios across diverse architectural or experimental
settings.
· 3½
Digit LCD with Auto ranging: Applying Quantitative Data Protocols. Supports the "Application" of precise
measurement techniques in optics, ensuring error-reduction through automated
range selection up to 200,000 Lux.
· Integrated
Tripod Mounting Socket: Understanding Experimental Variable Control. Allows for the "Understanding" of spatial
orientation impact on data by securing the sensor at fixed angles and heights
for repeatable trials.
International
Logistics & Compliance
To meet the requirements of international procurement and
global educational tenders, the Digital Luxmeter is secured in export-grade
seaworthy crating (ISPM-15 compliant). Documentation includes a Manufacturer’s
Authorization Form (MAF), complete IQ/OQ/PQ Certification, and technical User
Manuals in English. The apparatus features a tropicalized design; internal
circuitry is batch-tested for operational integrity and thermal stability in
environments up to 45°C and 90% non-condensing humidity.
