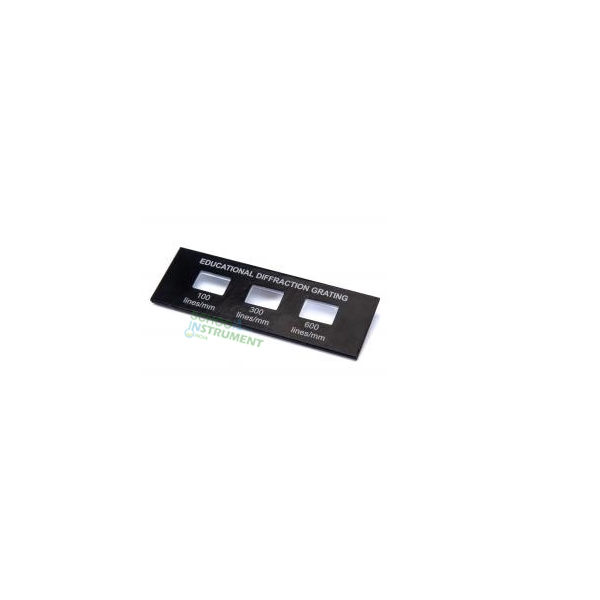

Demo Diffraction Grating Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11559
The Demo Diffraction Grating is a precision-calibrated
optical slide engineered for the quantitative analysis of light interference
and wavelength determination. Optimized for University and Secondary TVET
physics curricula, this instrument facilitates the empirical verification of
the grating equation. It complies with ISO 9001:2015
manufacturing standards for high-fidelity spectral dispersion.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Optical-grade glass plates
with high-precision film gratings |
|
Grating Densities |
100, 300, and 600 lines/mm
(Tri-sector configuration) |
|
Grating Dimensions |
20mm x 10mm (Total per
grating) |
|
Effective Viewing Area |
15mm x 10mm (Clear aperture) |
|
Mounting |
Sealed between protective
glass plates for environmental resistance |
Key Pedagogical Outcomes
·
Tri-Sector Density (100/300/600 lines/mm): Enables students to Evaluate the inverse relationship between grating
spacing (d) and angular separation, supporting Synthesis of wave properties.
·
Sealed Glass Plate Mounting: Facilitates the Application of
laser-based diffraction experiments without degradation of the film surface,
ensuring repeatable data in high-attrition vocational environments.
·
Calibrated Spectral Dispersion: Allows students to Analyze
emission spectra from gas discharge tubes to calculate specific atomic
transitions, reinforcing Analysis of quantum
mechanics.
International Logistics & Compliance
This School Instrument is consolidated for international B2B
procurement via export-grade seaworthy crating (ISPM-15
compliant). Each grating is vacuum-sealed in moisture-vapor barrier
packaging to prevent interlaminar delamination or optical clouding during
maritime transit. Documentation provided to procurement officers includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ
Certification, and technical data sheets in English. The tropicalized design is verified for structural
integrity in environments reaching 45°C and 90% Humidity,
ensuring that the gratings maintain precise line-density tolerances in
equatorial laboratory settings.
