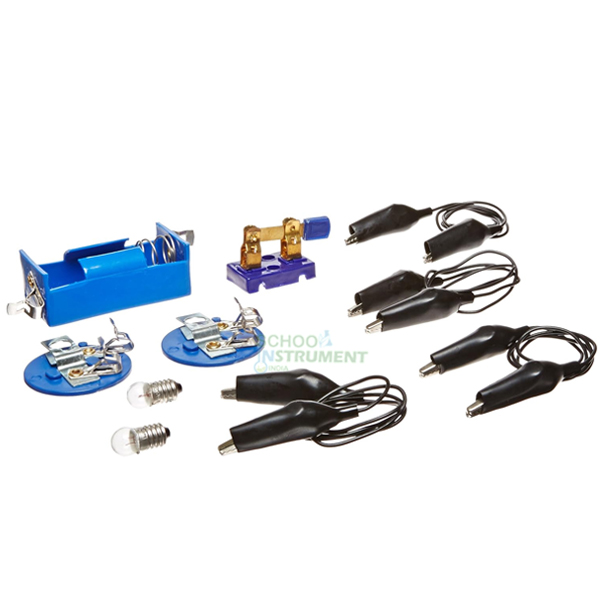

Create-A-Circuit Kit Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11447
Engineered for the
evidentiary study of Kirchhoff’s Laws and resistive networks, this modular
assembly facilitates the construction of series and parallel circuits.
Optimized for Secondary and Vocational STEM curricula, the components adhere to
ASTM-aligned standards for electrical safety and continuity. It enables
quantitative analysis of voltage drops and current distribution for
University-preparatory technical modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Conductivity Copper
Alloy Leads; Impact-Resistant Polymer Housings |
|
Switch Configuration |
Single-Pole, Single-Throw
(SPST) Knife Switch |
|
Conductivity Interface |
Insulated Alligator Clip
Leads (x4) |
|
Power Input Interface |
Integrated D-Cell Battery
Carrier |
|
Illumination Source |
Low-Voltage Miniature
Filament Lamps (x2) with Proprietary Holders |
|
Dimensions |
7" x 4" x 2" |
Key Pedagogical Outcomes
·
Modular
SPST Knife Switch: Facilitates the "Analysis" of circuit continuity, allowing
students to visualize the mechanical break in electron flow and evaluate the
operational status of the network.
·
Dual
Miniature Lamp Holders:
Supports the "Application" of Ohm’s Law, enabling students
to construct and compare luminosity variations between series and parallel
configurations.
·
Integrated
D-Cell Battery Carrier:
Enables the "Evaluation" of internal resistance and
source voltage stability during continuous load trials in Electrodynamics
Module 101.
·
Insulated
Alligator Clip Leads: Supports "Execution" of rapid prototyping, allowing
students to synthesize complex resistive networks without the requirement for
soldering or semi-permanent fixings.
·
Structured
Activity Protocol: Connects hardware to "Synthesis" of electrical engineering
principles, providing evidentiary support for calculating equivalent resistance
in multi-load systems.
International Logistics & Compliance
This assembly is
configured for high-volume B2B distribution and ministerial-level educational
tenders. Packaging consists of high-density protective inserts within
export-grade seaworthy crating (ISPM-15 compliant) to ensure component
integrity and lead continuity during maritime transit. Documentation provided
includes the Manufacturer’s Authorization Form (MAF), internal IQ/OQ/PQ
certification, and Technical User Manuals in English. All components feature a
tropicalized design, utilizing oxidation-resistant alloys and moisture-stable
polymers tested for operation in laboratory environments up to 45°C and 90%
Humidity.
