Water Filter, Candle Type Manufacturer,Supplier and Exporter in India
Product Code : EL-WS-10442
Last updated: 8 October 2026

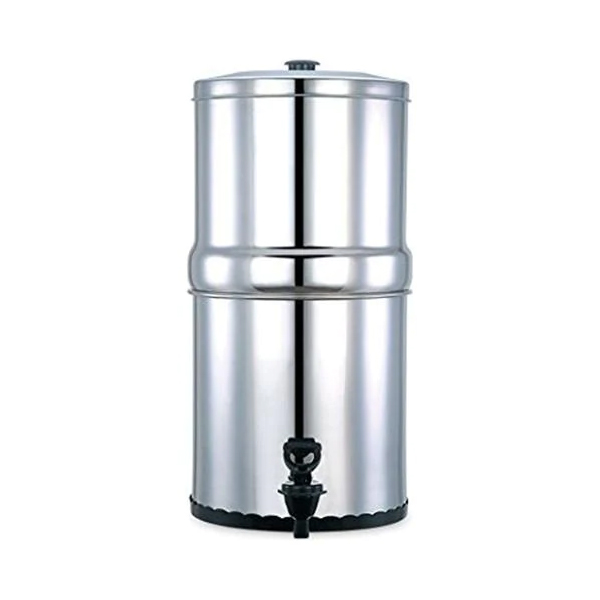

The Water Filter, Candle Type is a portable gravity-flow filter with four silver-impregnated ceramic candles in a 304 grade polished stainless steel body, giving an output of up to 80 litres per day, or 4 litres per hour, for the gravity filtration and partial disinfection of drinking water. It is listed in the Water and Sanitation range.
Specifications
| Specification | Value |
|---|---|
| Type | Portable, compact gravity-flow water filter |
| Function | Gravity flow filtration and partial disinfection of drinking water |
| Output, clear raw water | Up to 80 litres per day, 4 litres per hour |
| Output, cloudy raw water | As low as 10 litres per day |
| Body material | 304 grade polished stainless steel, robust construction |
| Outlet | Fitted with an outlet tap on the lower section |
| Number of elements | Four filter elements, candle type |
| Element material | Silver-impregnated ceramic |
| Element length | Minimum 178 mm, 7 inches |
| Element diameter | 50 mm, 2 inches |
| Element cleaning life | Cleanable at least 100 times with a soft brush |
| Construction | Two sections; upper holds the four candles and the lid, lower holds the tap |
| Section joint | Rubber anti-slip ring |
| Shipping | The two sections telescope together |
Used for
Point-of-use filtration where there is no power and no pressurised supply, since the unit works on gravity alone. The two figures in the table are the ones to plan around: 80 litres a day assumes reasonably clear raw water, and turbid water can pull that down to 10 litres a day, so pre-settling matters more than candle count. Because the candles are cleanable at least 100 times with a soft brush rather than replaced each time, the running cost sits in labour rather than consumables. Filtered water is checked with the Emergency Water Testing Kit for chlorine and pH, or the Portable Water Quality Test Kit for coliforms, and stored in a Collapsible Water Container or a Water Tank Collapsible.
Packing and documentation
Supplied in institutional quantities against a purchase order. The two filter sections telescope for shipping, which reduces the packed volume on a bulk consignment. School Instrument India states on its ordering pages that consignments carry a tracking ID and courier details until delivery. Mixed water and sanitation lots are quoted through the Tenders page.
Related items
- Emergency Water Testing Kit — chlorine 0.1 to 3.0 mg/l and pH 6.8 to 8.2, 250 tests each.
- Portable Water Quality Test Kit — coliform incubator at 44 C, plus pH, chlorine and conductivity.
- Vacuum Filter Stand Support — stainless steel single-place manifold for vacuum filtration.
- Collapsible Water Container — 10 litres, PVC-coated polyester, UV resistant.
- Water Tank Collapsible — 10 CBM, polyester with PVC coating.
- Water Tank (bladder) — 4 m by 2.2 m, for water transport on trucks.
- Bucket made of HDPE — for carrying and decanting raw water.
- Electrical Submersible Pump — borehole pump, motor up to 7.5 kW.
- Open Top Hand Pump — for shallow and medium-depth abstraction.
- First Response WASH and Dignity kit — one-month kit for a family of five.
- Water and Sanitation — the full pumps, tanks, valves, fittings and taps range.
- Glassware & Plasticware — vessels, dishes and laboratory consumables.
Questions buyers ask
How much water does this candle filter produce per day?
Up to 80 litres per day, or 4 litres per hour. With cloudy or murky raw water the output can fall to about 10 litres per day.
How many candles does it hold and what are they made of?
Four elements of silver-impregnated ceramic, each a minimum of 178 mm long and 50 mm in diameter.
Can the candles be cleaned instead of replaced?
Yes. The elements are cleanable at least 100 times with a soft brush.
What is the body made of?
304 grade polished stainless steel, in two sections joined by a rubber anti-slip ring, with the outlet tap on the lower section.
Does it need power or mains pressure?
No. It is a gravity-flow unit, which is why it is specified for point-of-use filtration where neither is available.
How is it packed for bulk despatch?
The two filter sections telescope together, so the packed volume per unit is lower than the assembled height.
Request a quotation
Send the quantity and the daily output you need to cover through the contact page. Buyers can request the latest copies of ISO certificates from School Instrument India.
