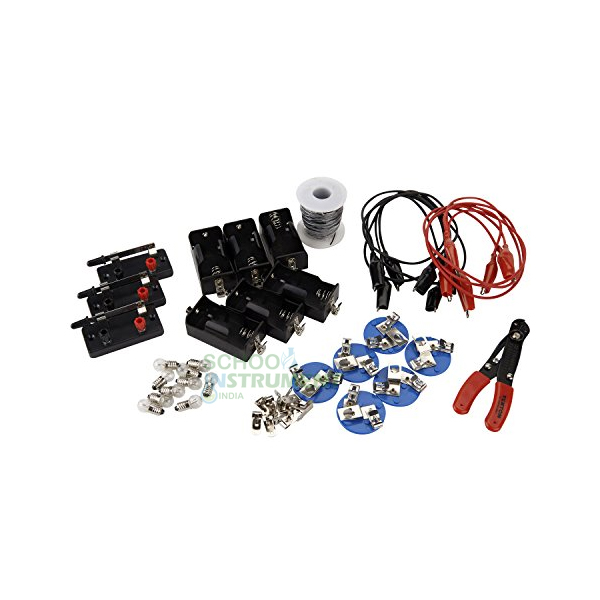

Student Electricity Assortment Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11463
The Modular Circuitry Instrumentation Kit is a standardized
suite of components engineered for the empirical analysis of DC circuit theory
and Ohmic resistance. Compliant with ASTM educational safety standards, this
kit facilitates the construction of series and parallel configurations for
secondary and vocational learners. It provides the requisite hardware for
measuring potential difference and current flow in low-voltage laboratory
environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Primary Conductor |
22 Gauge Insulated Copper
Wire (100ft spool) |
|
Terminal Connectivity |
Fahnestock Clips and
Alligator/Banana Lead Interfaces |
|
Switching Architecture |
Single Pole, Single Throw
(SPST) Knife Switches |
|
Load Capacity |
1.5V Miniature Incandescent
Bulbs with Polymer Holders |
|
Material Grade |
High-Impact ABS Plastic and
Corrosion-Resistant Brass/Alloy |
|
Dimensions |
Standardized for 1.5V
(D-Cell) Battery Compatibility |
Key Pedagogical Outcomes
·
SPST
Knife Switches: Allows students to
manually manipulate circuit continuity, supporting the Analysis of open vs. closed systems.
·
Fahnestock
and Alligator Clip Interfaces: Facilitates rapid prototyping of complex networks, enabling
students to Construct and troubleshoot multi-path parallel
circuits.
·
22
Gauge Copper Spool and Stripper: Provides hands-on experience in conductor preparation,
supporting the Application of resistance variables
based on wire length.
·
1.5V
Load Uniformity: Ensures consistent
visual telemetry of current flow, assisting in the Evaluation of
voltage drops across resistive elements.
