Lamp Boards Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11471

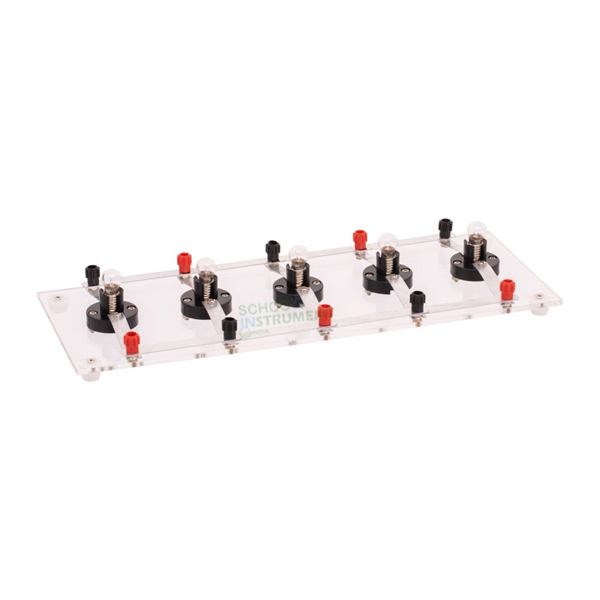

The Modular Lamp Board Array is a high-transparency
instrumentation tool engineered for the empirical analysis of resistive
networks. Compliant with ASTM educational laboratory standards, it facilitates
the simultaneous observation of series and parallel circuit behaviors for
Secondary and Vocational learners. The unit features integrated Fahnestock
terminals for low-impedance connectivity and includes calibrated miniature
incandescent bulbs for immediate laboratory deployment.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Substrate Material |
High-Clarity Optical Grade
Acrylic (Shatter-Resistant) |
|
Terminal Architecture |
Dual Nickel-Plated Spring
Steel Fahnestock Clips per Receptacle |
|
Socket Configuration |
Miniature Screw-Base (E10)
Receptacles |
|
Included Load Units |
Calibrated 1.5V / 2.5V
Miniature Incandescent Bulbs |
|
Circuit Topology |
Independent mounting for
user-defined Series/Parallel bridging |
Key Pedagogical Outcomes
·
High-Transparency
Acrylic Base: Enables students to examine underside trace paths and physical circuit
continuity, supporting the transition from schematic diagrams to physical
hardware.
·
Dual
Fahnestock Terminal Interconnects: Facilitates rapid prototyping and nodal modification, allowing
students to construct and troubleshoot complex resistive networks
without terminal fatigue.
·
Multiple
Independent Receptacles:
Supports the analysis of Kirchhoff’s Voltage and Current Laws by
providing measurable nodes for potential difference and current flow.
·
Visual
Light Intensity Telemetry:
Provides immediate qualitative data on power distribution, assisting in the evaluation of total resistance changes when adding or
removing loads.
International Logistics & Compliance
Our global logistics
department ensures that all instrumentation is dispatched in export-grade seaworthy crating (ISPM-15 compliant) to
protect the acrylic substrate and spring-tension terminals from mechanical
stress and saline oxidation during maritime transit. Comprehensive
documentation is provided with every consignment, including the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ
certification options for vocational centers, and technical Activity Guides in
English. The instrument utilizes a Tropicalized design,
featuring corrosion-resistant alloys and stabilized polymers tested for
operational stability in environments reaching 45°C and 90% humidity.
