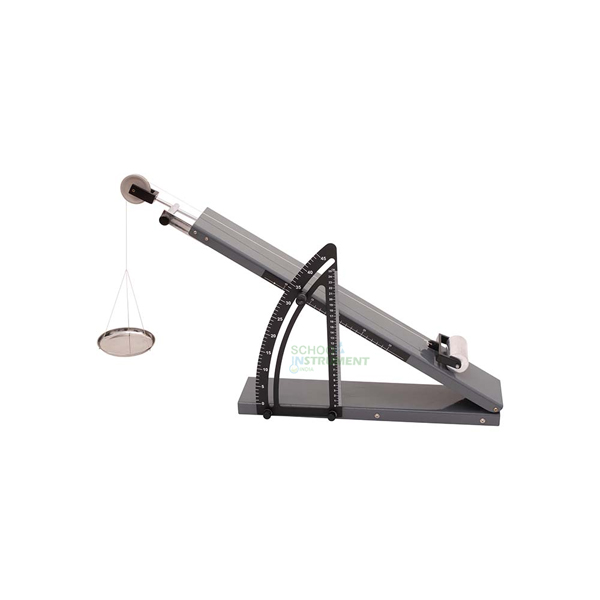

Inclined Plane with Pulley Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11494
The Steel Inclined Plane with Integrated Protractor is a
ruggedized laboratory instrument engineered for the empirical study of
Newtonian mechanics, including work-energy theorems and frictional
coefficients. Designed for Secondary and Vocational TVET curricula, this
apparatus complies with ASTM standards for physical science equipment. It
facilitates precise angular adjustments for University-level statics and dynamics
modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Industrial-Grade Structural
Steel |
|
Plane Dimensions |
23" (L) x 4" (W) |
|
Angular Measurement |
Integrated Graduated
Protractor |
|
Mechanical Interface |
Adjustable-Height
Low-Friction Pulley |
|
Load Components |
14 oz. Machined Steel Roller;
Mass Pan with High-Tensile Cord |
|
Shipping Dimensions |
26" x 7" x 3"
(Main Unit); 5.5" x 5.5" x 2.5" (Roller) |
|
Total Shipping Mass |
7 lbs. (Main Unit); 1.5 lbs.
(Roller Only) |
Key Pedagogical Outcomes
·
Integrated
Graduated Protractor: Enables students to calculate the resolution of force vectors into normal
and parallel components across variable inclinations.
·
14
oz. Machined Steel Roller:
Allows learners to analyze the conservation of energy
and the impact of rotational inertia on translational motion.
·
Adjustable
Pulley Assembly: Supports the construction of complex mechanical advantage arrays,
allowing for the evaluation of theoretical vs.
actual mechanical efficiency.
·
Heavy-Duty
Steel Substrate: Provides a rigid,
non-deforming surface to demonstrate
consistent frictional coefficients and uniform acceleration in Dynamics Module
102.
International Logistics & Compliance
To meet the rigorous
requirements of international procurement officers and global educational
tenders, this instrumentation is dispatched in export-grade seaworthy crating
(ISPM-15 compliant). This ensures that the steel chassis and
graduated scales are protected against mechanical deformation and
saline-induced oxidation during maritime transit. All consignments include a
comprehensive documentation suite: Manufacturer’s Authorization
Form (MAF), IQ/OQ/PQ certification protocols for institutional
accreditation, and technical User Manuals in English. The hardware features a Tropicalized design, utilizing corrosion-resistant
coatings batch-tested for operational stability in environments reaching 45°C
and 90% humidity.
