Demonstration Motor/Generator Set Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11580

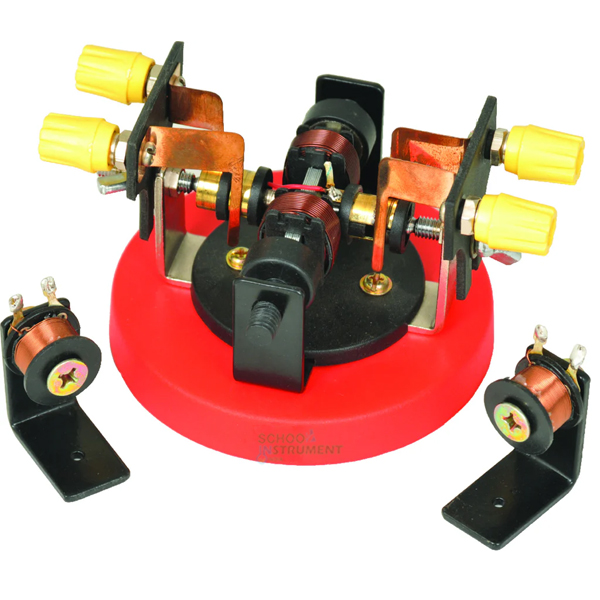

The Demonstration
Motor/Generator Set is a precision-engineered electromechanical apparatus for
the quantitative analysis of Faraday’s Law and Lorentz force. Designed for
Secondary and Vocational curricula, it facilitates the bidirectional conversion
of electrical and mechanical energy. This School Instrument complies with
standard laboratory safety protocols for low-voltage physics instruction and
classroom-scale power generation simulations.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
High-Conductivity Copper
Windings; Impact-Resistant Polymer Chassis |
|
Operational Modes |
DC Motor
(Electrical-to-Mechanical) / Dynamo Generator (Mechanical-to-Electrical) |
|
Dimensions |
177.8 mm x 152.4 mm x 76.2 mm
(7" x 6" x 3") |
|
Magnetic Circuit |
High-Flux Density Permanent
Magnet Array |
|
Shipping Weight |
0.45 kg (1lb.) |
Key Pedagogical Outcomes
· Exposed
Armature and Commutator: Analyzing Electromechanical Commutation. Facilitates the direct visualization of
current reversal in DC systems, allowing students to "Analyze" the
relationship between magnetic polarity and rotational torque.
· Bidirectional
Energy Path: Evaluating Law of Conservation of Energy. Enables learners to "Evaluate"
energy loss through friction and heat during the conversion of mechanical work
to electrical EMF.
· Integrated
Permanent Magnet Array: Applying Electromagnetic Induction. Supports the "Application" of
Fleming’s Right-Hand and Left-Hand Rules in a controlled laboratory
environment.
· Modular
Terminal Inputs/Outputs: Understanding Circuit Integration. Provides a practical interface for students
to "Understand" how external loads affect the resistive torque of a
generator.
International Logistics & Compliance
To meet the rigorous
requirements of international procurement officers and global educational
tenders, all units are dispatched in export-grade seaworthy crating (ISPM-15
compliant). Documentation provided includes a Manufacturer’s Authorization Form
(MAF), complete IQ/OQ/PQ Certification, and technical User Manuals in English.
This School Instrument features a tropicalized design, utilizing
corrosion-resistant coatings on all conductive components, batch-tested for
operational integrity in environments up to 45°C and 90% non-condensing
humidity.
