Deluxe Wimshurst Generator Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11614

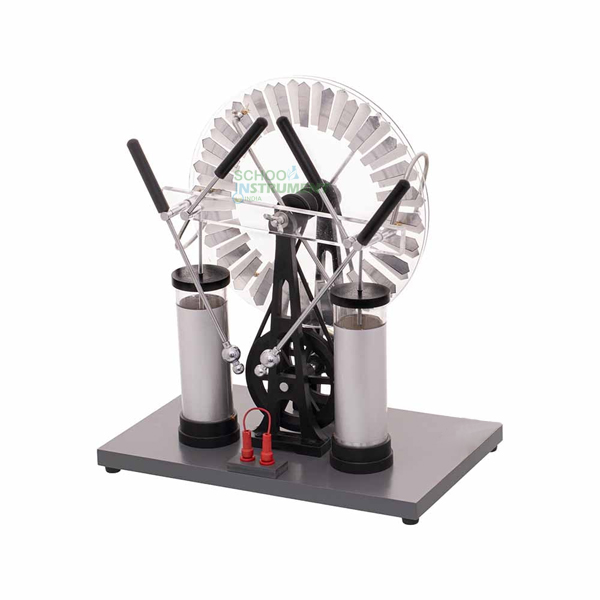

The Deluxe Wimshurst
Generator is a high-authority pedagogical instrument engineered for the
consistent generation of high-voltage electrostatic charges. Capable of
producing discharge potentials up to 90,000V, this unit is designed for
Secondary (Grades 7-12) and Vocational (TVET) physics curricula. Constructed
with clear acrylic rotating disks and insulated cylindrical Leyden jar
capacitors, the instrument facilitates evidentiary demonstrations of charge
accumulation, spark gap ionization, and dielectric breakdown in accordance with
international physical science standards.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Model Designation |
School Instrument WIMS02 |
|
Potential Output |
90,000 Volts (Peak) |
|
Disk Material |
High-Transparency UV-Stabilized
Acrylic |
|
Disk Diameter |
320mm (Nominal) |
|
Capacitor Type |
Twin Insulated Cylindrical
Leyden Jars |
|
Base Construction |
Impact-Resistant ABS/Polymer
Platform |
|
Support Pillars |
Machined Solid-Core PVC |
|
Drive Mechanism |
Dual-Belt Manual Crank
(Counter-Rotating) |
|
Dimensions (HxWxD) |
483mm x 330mm x 432mm
(19" x 13" x 17") |
|
Net Weight |
4.99 kg (11.0 lbs.) |
Key Pedagogical Outcomes
o Twin
Counter-Rotating Acrylic Disks with Foil Sectors. Enables students to analyze the triboelectric
effect and induction-based charge separation, supporting the "Electricity
& Magnetism" core module.
o Integrated
Dual Cylindrical Capacitors (Leyden Jars). Allows for the evaluation of charge storage capacity and
discharge cycles, facilitating laboratory calculations of electrostatic
potential energy.
o Adjustable
Spark Gap Electrodes with Insulated Handles. Supports the demonstration of air as a dielectric and the
visualization of plasma arc formation under varying atmospheric conditions.
o Transparent
Functional Components.
Promotes mechanical comprehension of the internal gear-to-belt ratio and its
relation to rotational velocity and charge frequency.
International Logistics & Compliance
As a specialized
exporter of educational apparatus, we provide comprehensive logistical support for
international tender fulfillment. This instrument is packaged in export-grade,
reinforced seaworthy crating (ISPM-15 compliant) to ensure structural integrity
during multimodal transit. Each unit is supplied with a Manufacturer’s
Authorization Form (MAF), a Certificate of Conformity, and a technical user
manual in English. The ruggedized "tropicalized" design is verified
for operational stability in high-humidity environments (up to 90% RH) and
ambient temperatures reaching 45°C.
