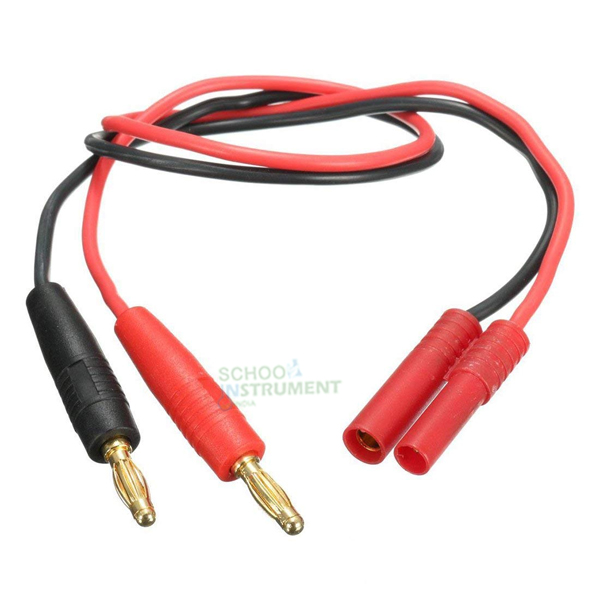

Banana Plug Cords Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11475
The Stackable Banana Plug Jumper Set is a high-fidelity
electrical interconnect solution engineered for complex circuit prototyping and
simultaneous telemetry access. Compliant with ASTM educational safety
standards, these 18 AWG stranded-core leads are optimized for University,
Secondary, and Vocational TVET curricula. They enable the analysis of
multi-nodal networks by allowing vertical stacking of multiple conductors at a
single terminal point.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Conductor Grade |
18 AWG (SWG Equivalent)
High-Flex Stranded Copper |
|
Terminal Architecture |
Two-way Stackable Banana
Plugs (Male/Female Integration) |
|
Contact Material |
Nickel-Plated Beryllium
Copper or Brass Alloy |
|
Insulation Grade |
High-Dielectric Polyvinyl
Chloride (PVC) or Silicone |
|
Configuration |
Dual-Ended Stackable
Interface |
Key Pedagogical Outcomes
·
Two-Way
Stackable Interface: Enables students to construct parallel bridge circuits and simultaneous
voltmeter access at a single node without increasing contact resistance.
·
18
AWG Stranded Copper Core:
Minimizes parasitic impedance, allowing learners to calculate
theoretical versus empirical circuit values with high accuracy.
·
High-Flexibility
Cordage: Supports the demonstration of complex topological layouts and 3D
circuit modeling in advanced Electrodynamics Module 202.
·
Precision-Molded
Connector Housing: Reinforces the application of safe laboratory practices by ensuring
consistent terminal seating and preventing accidental shorting.
International Logistics & Compliance
To meet the stringent
requirements of international procurement officers and global educational
tenders, these jumper sets are dispatched in export-grade seaworthy crating
(ISPM-15 compliant). This ensures the structural integrity of the
high-flex copper cores and terminal plating against mechanical shear and saline
oxidation during maritime transit. Documentation provided with every
consignment includes the Manufacturer’s Authorization
Form (MAF), IQ/OQ/PQ certification protocols for vocational centers,
and technical specifications in English. The leads feature a Tropicalized design, utilizing UV-stabilized polymers
batch-tested for operational stability in environments reaching 45°C and 90%
humidity.
