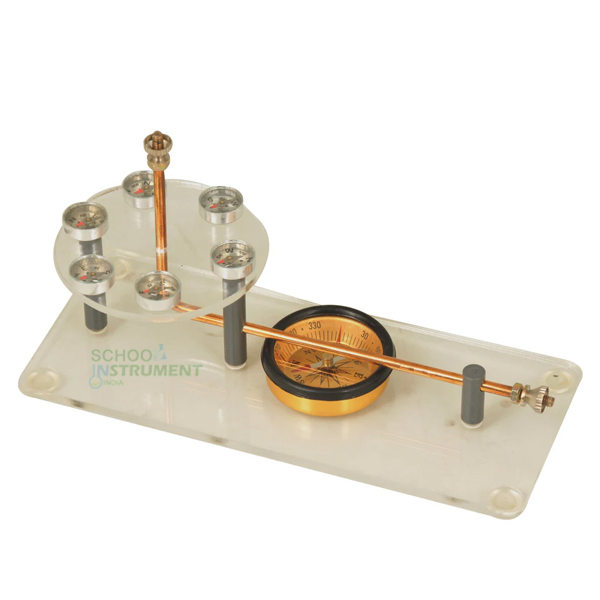

Ampere's Rule Apparatus Manufacturer,Supplier and Exporter in India
Product Code : SCL-M-11443
Engineered for the
quantitative and qualitative analysis of Oersted's discovery, this apparatus
facilitates the mapping of magnetic flux density surrounding a linear
conductor. Designed for Secondary and University Physics curricula, it adheres
to ASTM-aligned laboratory safety standards. The system enables students to
verify Ampere’s Right-Hand Rule through the simultaneous observation of
multiple compass deflections across a transparent geometric plane.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Heavy-Gauge Solid Brass
Conductor; High-Optical Acrylic Base |
|
Conductor Configuration |
Rigid Brass Wire with
High-Conductivity Terminal Blocks |
|
Instrumentation Set |
1x 45mm Master Compass; 6x
16mm Field Mapping Compasses |
|
Dimensions |
7" x 3" x 4" |
|
Shipping Weight |
1.0 lb. |
Key Pedagogical Outcomes
· Linear
Brass Conductor with Integrated Terminals: Facilitates the "Analysis"
of the relationship between current and magnetic field
strength, providing a stable, low-resistance path for
high-current demonstration.
· Multi-Compass
Array (7 Units): Supports the "Application" of vector field mapping,
allowing students to visualize the circular nature of magnetic flux surrounding
a conductor in a single plane.
· Clear
Acrylic Observation Platform: Enables the "Evaluation"
of field directionality, supporting the use of overhead projectors for
cohort-wide visualization of compass needle alignment.
· 45mm
and 16mm Calibrated Compasses: Support "Execution"
of comparative deflection trials, assisting students in synthesizing the concept
of magnetic field magnitude vs. distance from the conductor.
·
Structured
Activity Guide: Connects hardware
usage to "Synthesis" of the Biot-Savart Law and
electromagnetism fundamentals through 17+ evidentiary laboratory protocols.
International Logistics & Compliance
This apparatus is
configured for high-volume B2B distribution and ministerial-level educational
tenders. Packaging consists of high-density protective inserts within
export-grade seaworthy crating (ISPM-15 compliant) to prevent structural base
damage or compass needle demagnetization during maritime transit. Documentation
provided includes the Manufacturer’s Authorization Form (MAF), internal
IQ/OQ/PQ certification, and Technical User Manuals in English. The unit
features a tropicalized design, tested for material stability and conductor
integrity in laboratory environments up to 45°C and 90% humidity.
